Navigating unpredictable off-road terrain presents distinct challenges for any driver. You must anticipate sudden changes in ground conditions. Deep mud pits, loose sand, and steep rocky inclines can halt the progress of even the most capable vehicles. When your momentum stops completely, relying solely on four-wheel drive is rarely enough to regain traction. You need a reliable mechanical advantage to pull your vehicle back to solid ground. A well-equipped off-road setup requires careful planning and the integration of specialized equipment designed for self-recovery.

A high-quality truck recovery winch serves as the primary safety mechanism for these exact situations. This tool provides the necessary pulling power to extract your vehicle from deep ruts or high-centered positions. Without a dependable recovery system, a minor loss of traction can quickly become a significant logistical problem. You risk spending hours attempting manual extraction or waiting for an expensive professional tow. Investing in the proper equipment ensures you maintain control over your journey and can confidently explore remote trails.

Understanding the technical specifications of recovery equipment is necessary for making a sound investment. This comprehensive 4x4 winch guide will help you navigate the complex variables involved in selecting the right unit. You must evaluate pulling capacity, motor efficiency, rope materials, and mounting requirements. By analyzing these critical components, you can build a recovery system that seamlessly integrates with your existing custom truck accessories. Your final decision will directly impact your safety and operational efficiency during off-road excursions.

Understanding Winch Pulling Capacity and Vehicle Weight

Your vehicle's weight serves as the foundational metric when selecting a truck recovery winch. You cannot simply purchase the most popular model on the market and expect it to perform safely. You must calculate the Gross Vehicle Weight Rating of your specific truck or SUV. This rating includes the base weight of the vehicle plus the weight of all passengers, fuel, cargo, and aftermarket modifications. Heavy steel bumpers, larger tires, and additional overlanding gear significantly increase the overall mass of your rig.

Industry standards dictate that your winch should possess a rated line pull of at least one and a half times your Gross Vehicle Weight Rating. This multiplier accounts for the additional resistance encountered during a typical recovery operation. If your fully loaded vehicle weighs six thousand pounds, you need a winch with a minimum capacity of nine thousand pounds. Choosing a unit with a ten thousand or twelve thousand pound capacity provides an extra margin of safety. This additional capacity ensures the motor does not operate at its absolute maximum limit during standard extractions.

Environmental factors dramatically alter the effective weight of your vehicle during a recovery. When your truck is buried to the axles in thick mud, the suction effect creates massive drag. Pulling a vehicle up a steep incline also requires exponentially more force than moving it across a flat surface. These real-world conditions demand a winch with substantial reserve power. If you frequently navigate deep bogs or mountainous terrain, you should consider increasing your capacity multiplier to double the vehicle weight.

Operating an undersized winch creates dangerous vulnerabilities for you and your vehicle. Pushing a low-capacity motor beyond its limits leads to rapid overheating and catastrophic mechanical failure. The internal gears can strip, or the electrical solenoids can melt under excessive load. An equipment failure in the middle of a remote trail leaves you stranded without a backup plan. By accurately calculating your required capacity, you ensure your recovery system performs reliably under the most demanding conditions.

Evaluating Rope Materials for Durability and Safety

The choice between synthetic rope and traditional steel cable represents a major decision in your winch configuration. Each material offers distinct advantages and requires specific maintenance routines to ensure longevity. Steel cable has served as the industry standard for decades due to its exceptional resistance to abrasion. If you frequently drag your line over sharp rocks or abrasive tree bark, steel provides a highly durable solution. It withstands physical abuse better than any other material on the market.

Despite its durability, steel cable presents several operational challenges that you must consider. Steel is heavy and difficult to handle during a complicated rigging process. As the cable ages, it develops sharp burrs that can easily slice through protective gloves. The most significant drawback of steel cable is its tendency to store immense kinetic energy under tension. If a steel line snaps during a heavy pull, it whips back with devastating force, causing severe damage to vehicles or bystanders.

Synthetic rope offers a modern alternative that prioritizes user safety and ease of handling. This material is incredibly lightweight and floats on water, making it ideal for muddy or aquatic recoveries. Synthetic lines do not store kinetic energy in the same manner as steel cables. If a synthetic rope breaks under load, it simply falls to the ground rather than snapping back violently. This characteristic makes synthetic rope the preferred choice for many off-road enthusiasts focused on risk mitigation.

You must commit to a strict maintenance schedule if you choose synthetic rope for your truck recovery winch. Synthetic fibers are highly susceptible to ultraviolet degradation from prolonged sun exposure. You must keep the rope covered when not in use to prevent the material from breaking down. Sand and grit can also penetrate the fibers, causing internal abrasion that weakens the line over time. You should wash the rope regularly to remove abrasive particles and inspect it frequently for signs of fraying or damage.

Analyzing Motor Types and Powertrain Efficiency

The internal motor serves as the heart of your winch, converting electrical energy into mechanical pulling force. You will encounter two primary motor designs when researching your options. These are permanent magnet motors and series wound motors. Permanent magnet motors are typically found in entry-level or light-duty winches. These motors rely on magnetic fields generated by permanent magnets within the housing. They draw less amperage from your vehicle's battery, making them suitable for occasional, light-duty recovery tasks.

While permanent magnet motors offer efficiency, they possess distinct limitations in extreme conditions. These motors are highly sensitive to heat buildup during extended pulling sessions. If the motor becomes too hot, the permanent magnets can lose their magnetic properties entirely. This degradation results in a permanent loss of pulling power. You must monitor the motor temperature closely and allow for frequent cooling periods if you use a permanent magnet winch for a heavy extraction.

Series wound motors provide a vastly superior solution for serious off-road applications. These motors utilize field coils instead of permanent magnets to generate their internal magnetic field. This design allows the motor to operate efficiently under massive loads without the risk of permanent magnetic degradation. Series wound motors deliver consistent, heavy-duty performance during long, difficult recoveries. They represent the standard choice for professional recovery vehicles and dedicated off-road rigs.

You must ensure your vehicle's electrical system can support the high energy demands of a series wound motor. These powerful motors draw significant amperage from your battery and alternator. You should evaluate your current electrical setup before installing a heavy-duty winch. Upgrading to a high-output alternator and a dual-battery system will prevent electrical failure during a prolonged recovery. Matching the motor type to your anticipated usage and electrical capacity guarantees a reliable system when you need it most.

Selecting the Right Gear Train System

The gear train system dictates how efficiently the motor's speed is converted into raw pulling torque. Understanding the mechanics of different gear systems helps you align the winch performance with your specific operational needs. Planetary gear systems dominate the consumer market due to their compact size and lightweight construction. These systems utilize a central sun gear surrounded by multiple planetary gears. This configuration provides a fast line speed, allowing you to spool the rope quickly when there is no load on the line.

Planetary gears require an external braking mechanism to hold the load when the motor stops. Because the gears turn freely in both directions, the brake prevents the vehicle from slipping backward down an incline. You must ensure the braking system is robust and well-maintained. The primary disadvantage of planetary gears is their tendency to generate significant heat inside the drum. This heat can transfer to synthetic ropes, making heat shields a necessary addition to your setup.

Worm gear systems offer a completely different approach to power transfer and load management. A worm gear setup features a threaded shaft that meshes with a toothed wheel. This design creates immense gear reduction, resulting in incredible pulling power and extreme durability. Worm gear winches are inherently self-braking. The mechanical design prevents the load from driving the gear backward, eliminating the need for a separate friction brake. This intrinsic holding power provides exceptional safety during steep, heavy recoveries.

The trade-off for the durability of a worm gear system is a significantly slower line speed. You will spend more time spooling the cable in and out compared to a planetary system. Additionally, worm gear winches are physically larger and heavier, which can complicate the mounting process. If your off-road activities involve extreme rock crawling or industrial-level extractions, the reliability of a worm gear system outweighs the slower operational speed. You must weigh the benefits of speed against the necessity for absolute mechanical holding power.

Integrating the Winch with Custom Truck Accessories

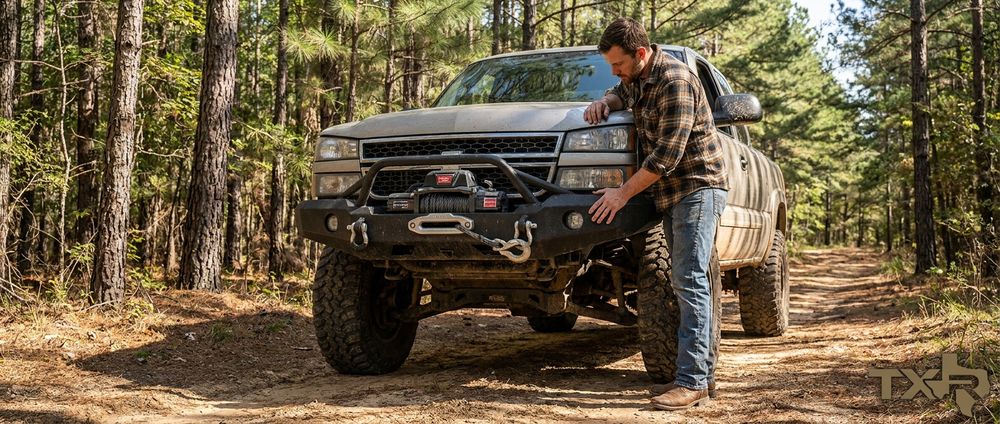

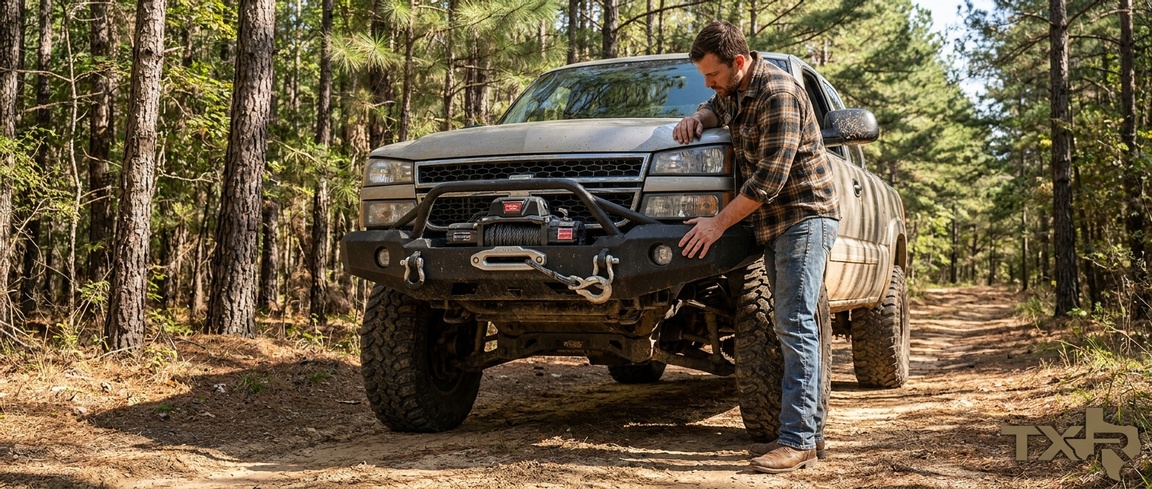

Installing a truck recovery winch involves more than simply bolting the unit to the front of your vehicle. You must integrate the system properly to maintain the structural integrity and driving dynamics of your truck. The foundation of this integration is a heavy-duty winch bumper. Factory bumpers are rarely engineered to withstand the immense shearing forces generated during a heavy pull. You need a specialized aftermarket bumper designed specifically to house your chosen winch model and distribute the load across the vehicle's frame.

Adding a winch and a heavy steel bumper introduces significant weight to the front end of your vehicle. This additional mass compresses the front suspension, altering the ride height and steering geometry. You must address this weight imbalance to preserve your vehicle's handling characteristics. Upgrading your front coil springs or installing a comprehensive suspension lift is often necessary to compensate for the added weight. Properly matching your suspension components to your custom truck accessories ensures a safe and comfortable ride on the highway.

A complete recovery system requires a dedicated collection of rigging accessories to maximize the utility of your winch. You should assemble a comprehensive recovery kit that includes heavy-duty tree saver straps, rated D-rings, and soft shackles. A snatch block is perhaps the most valuable accessory you can add to your kit. Using a snatch block allows you to double the pulling capacity of your winch by routing the line back to your vehicle. This technique also allows you to change the direction of the pull when a straight-line anchor point is unavailable.

Electrical integration demands meticulous attention to detail during the installation process. You must route the heavy-gauge power cables safely away from moving engine parts and sharp metal edges. Utilizing proper wire looms, heavy-duty battery terminals, and inline fuses protects your vehicle from catastrophic electrical shorts. A cleanly wired system prevents voltage drops and ensures the motor receives the maximum available amperage. Taking the time to properly integrate your winch guarantees it functions flawlessly alongside all your other vehicle modifications.

Equipping your vehicle with the correct recovery gear requires a strategic evaluation of your specific off-road habits and vehicle specifications. You must carefully balance pulling capacity, motor efficiency, and rope materials to build a system that performs reliably under pressure. A well-integrated winch setup provides the mechanical advantage necessary to navigate difficult terrain with absolute confidence. By treating your recovery equipment as a core component of your overall vehicle build, you ensure maximum safety and operational readiness for any expedition.

Achieving the perfect balance of performance and reliability demands professional insight and precise installation. Every truck requires a specific approach to suspension tuning, electrical upgrades, and bumper integration to support a heavy-duty recovery system. To discuss the optimal configuration for your specific vehicle, reach out to Sales@TexasTruckWorks.com. We can help you navigate the technical requirements and ensure your setup is engineered for peak performance on the trail.
